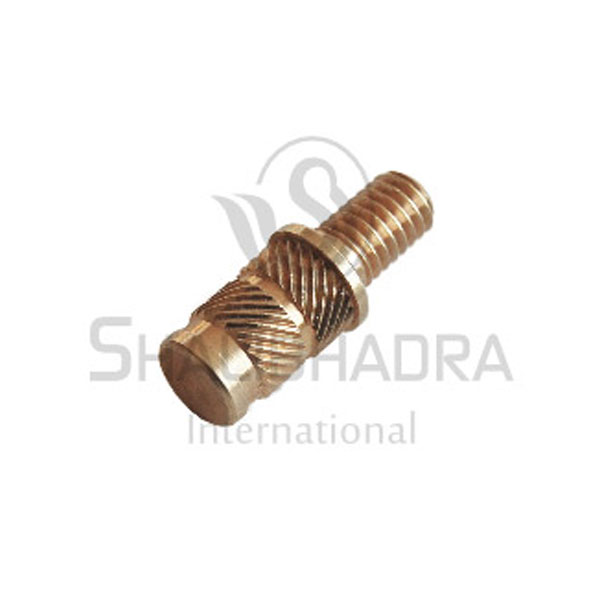

| Premium brass studded ultra inserts engineered for superior grip and high strength fastening in plastic parts. Ideal for demanding industrial and commercial applications. |
Brass Studded Ultra Insert Application / Usage :
Plastic Industires
Furniture Industry
Electronic Industry
Automobile Industry,etc…
Brass Studded Ultra Insert Finishing & Coating :
Natural
Golden Finish
Silver Finish
Nickle Platted
Chrome Platted
Tin Plated
Any coating as per customer specifications
Brass Studded Ultra Insert Threads:
ISO Metric (MM Threads)
BA Threads
BSW Threads (Inches)
UNC, UNF,UNEF and NPT Threads
BSP & BSPT (Parallel & Taper Threads)
Any threads as per specifications
Brass Studded Ultra Insert Special Features :
Thread as per international Go and Not Go Gauge Standard.
Deep Groove for maximum Pull out Resistance.
Inner Diameter (ID) after threading with very close tolerance to prevent unrequired flush to enter into brass dome nut.
Brass Studded Ultra Insert Packing Details :
Bag Packging
Innear Plastic Packing
Carton Packaging
Woodan Carton Packing
Brass Studded Ultra Insert Material :
Free Cutting Brass IS 319 Type (l)
Free Cutting Brass as per BS 249 Type (I)
Generally Free Machine Grade of CuZn37Pb3 equivalent to BS 2874 is used to manufacture various brass fasteners.
Other grades which are followed as per custom requirements are CZ 121, CZ 131, C3604, CDA 360, and DTD 627 etc
High Grade Free Cutting Brass.
Any Special Brass Material Composition as per customer’s requirement
Brass Studded Ultra Insert Dimension / Length / Size :
We manufacture any differnt size of insert as per Drawing or Sample.
| Thread Size | Length (L) | ØH | ØD | T | Pilot Hole |
|---|---|---|---|---|---|
| M2 | 4.0 | 4.8 | 3.6 | 0.6 | 3.2 |
| M2.5 | 5.8 | 5.6 | 4.6 | 0.6 | 4.0 |
| M3 | 5.8 | 5.6 | 4.6 | 0.6 | 4.0 |
| M3.5 | 7.2 | 6.4 | 5.4 | 0.8 | 4.8 |
| M4 | 8.2 | 7.2 | 6.3 | 0.8 | 5.6 |
| M5 | 9.5 | 8.0 | 7.0 | 1.0 | 6.4 |
| M6 | 12.7 | 9.5 | 8.6 | 1.3 | 8.0 |
| M8 | 12.7 | 11.0 | 10.2 | 1.3 | 9.6 |
All dimensions in mm.
Pilot hole dimensions are for reference purposes only.
Available with or without head, and with a stud length (S) of 6, 10, 16 or 25mm
