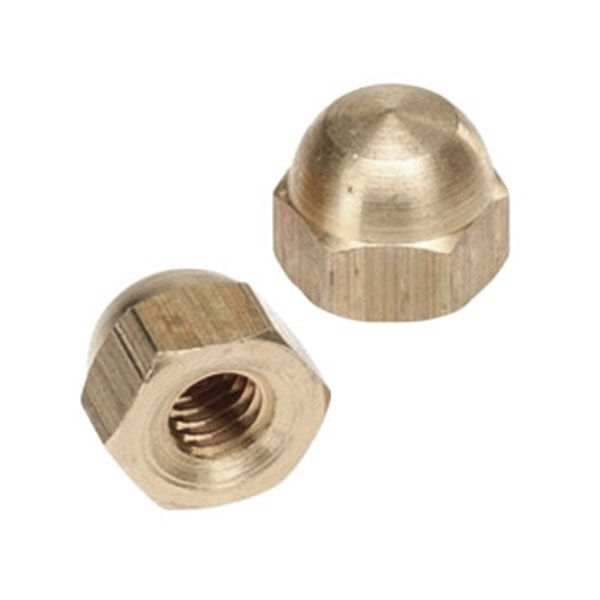

The Brass Dome Nut DIN 1587 PN 82181 is designed to provide a secure and reliable fastening solution, offering an elegant, dome-shaped cover for bolts and screws. Manufactured from high-quality brass, this nut offers superior corrosion resistance, making it suitable for use in both indoor and outdoor environments, especially where protection from moisture and rust is crucial. Its unique design ensures a clean, smooth finish while offering enhanced aesthetic appeal. The Brass Dome Nut is ideal for a range of applications in the automotive, marine, and industrial sectors, where durability and longevity are essential. It is available in a variety of sizes to meet specific project needs, ensuring a tight fit and optimal performance.
Brass Dome Nut DIN 1587 PN 82181 Application
Electronic Industry
Automobile Industry
Engineering Industry
Brass Dome Nut DIN 1587 PN 82181 Finishing & Coating
Natural
Golden Finish
Silver Finish
Nickle Platted
Chrome Platted
Tin Plated
Any coating as per customer specifications
Brass Dome Nut DIN 1587 PN 82181 Threads
CUSTOMISED BRASS SQUARE NUT IN THREAD
ISO Metric (MM Threads)
BA Threads
BSW Threads (Inches)
UNC, UNF,UNEF and NPT Threads
BSP & BSPT (Parallel & Taper Threads)
Any threads as per specifications
Brass Dome Nut DIN 1587 PN 82181 Special Features
Thread as per international Go and Not Go Gauge Standard.
Deep Groove for maximum Pull out Resistance.
Inner Diameter (ID) after threading with very close tolerance to prevent unrequired flush to enter into brass dome nut.
Brass Dome Nut DIN 1587 PN 82181 Packing Details
Bag Packging
Innear Plastic Packing
Carton Packaging
Woodan Carton Packing
Brass Dome Nut DIN 1587 PN 82181 Material
Free Cutting Brass IS 319 Type (l)
Free Cutting Brass as per BS 249 Type (I)
Generally Free Machine Grade of CuZn37Pb3 equivalent to BS 2874 is used to manufacture various brass fasteners.
Other grades which are followed as per custom requirements are CZ 121, CZ 131, C3604, CDA 360, and DTD 627 etc
High Grade Free Cutting Brass.
Any Special Brass Material Composition as per customer’s requirement
Brass Dome Nut DIN 1587 PN 82181 Dimension / Length / Size
| d1 | h | s | e |
|---|---|---|---|
| m3 | 6 | 5.5 | 6.8 |
| m4 | 8 | 7 | 7.66 |
| m5 | 10 | 8 | 8.79 |
| m6 | 12 | 10 | 11.05 |
| m8 | 15 | 13 | 14.38 |
| m10 | 18 | 17 | 18.9 |
| m12 | 22 | 19 | 21.1 |
| m14 | 25 | 22 | 24.49 |
| m16 | 28 | 24 | 26.75 |
| m18 | 32 | 27 | 30.14 |
| m20 | 34 | 30 | 33.53 |
| m22 | 39 | 32 | 35.72 |
| m24 | 42 | 36 | 39.98 |
L= LENGTH AS PER CUSTOMER REQUIRE.
ALL DIMANSION IN MM.
