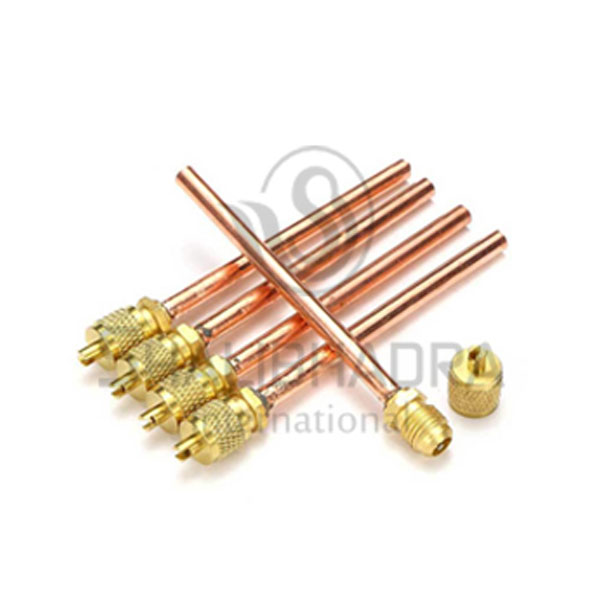

Brass Access NRV Charging Valve Nipple Size:
| Part No. | Size |
|---|---|
| DUTUX NRV CVN 14 | 1/4″ Regular – 4.5″ PIPE |
| DUTUX NRV CVN 14 | 1/4″ Small – 3.5″ PIPE |
| DUTUX NRV CVN 14 | 1/4″ Big – 6″ PIPE |
Any customized thread or size as per customer provided specifications.
Brass Access NRV Charging Valve Nipple Application / Usage / Specification :
Air conditioning / Refrigerator
Charging valve, access valve, check valve, one-way valve, valve for refrigerator, refrigeration tool Access Valve
Refrigeration parts for refrigerator, air conditioner and auto air conditioner industries
The charging valve is an one-way service valve with valve inside.
The charging valve is used for the freezer, cold store and air conditioning unit.
Brass Access NRV Charging Valve Nipple Rod :
Casting / Extrusion
Applicable for all common HFC, HFO refrigerants1) such as:
R134a, R404A, R407C, R410A, R507A, R407A, R407F,R448A, R449A, R452A, R450A/R513A2
Ambient temperature min./max.: -30°C / +55°C
Medium temperature TS min./max.: -30 °C / +120°C
Max. operating pressure PS: 4,5 MPa (45 bar)
Installation position: Preferably liquid and suction line
Brass Access NRV Charging Valve Nipple Finishing & Coating :
Natural
Golden Finish
Silver Finish
Nickle Platted
Chrome Platted
Tin Plated
Any coating as per customer specifications
Brass Access NRV Charging Valve Nipple OEM Service :
Yes
Our company provide you products in your customized design with your brand.
Brass Access NRV Charging Valve Nipple Material :
Free Cutting Brass IS 319 Type (l)
Free Cutting Brass as per BS 249 Type (I)
Other grades which are followed as per custom requirements are CZ 121, CZ 131, C3604, CDA 360, and DTD 627 etc.
High Grade Free Cutting Brass.
Any Special Brass Material Composition as per customer’s requirement
Brass Access NRV Charging Valve Nipple Special Features :
Equipped with imported valve inside of reliable performance.
Double sealing ensure leak-tight.
Copper tube of various lengths and hardness are available.
Valve bonnet is knurled for easy handling.
The charging valve is an one-way service valve with valve inside.
The charging valve is used on the freezer, cold store and air conditioning unit.
Thread as per international Go and Not Go Gauge Standard.
Deep Groove for maximum Pull out Resistance.
Inner Diameter (ID) after threading with very close tolerance to prevent unrequired flush to enter into brass split valve.
High internal and external surfaces clean.
High dimensional accuracy.
High heat transfer efficiency.
Easy welding.
Corrosion resistance.
Formability use long life.
Leakage-proof
Brass Access NRV Charging Valve Nipple Packing Details :
Bag Packging
Box Packing
Innear Plastic Packing
Carton Packaging
Wooden Carton Packing
